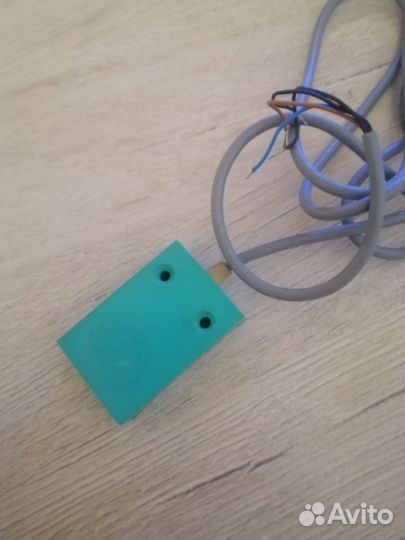

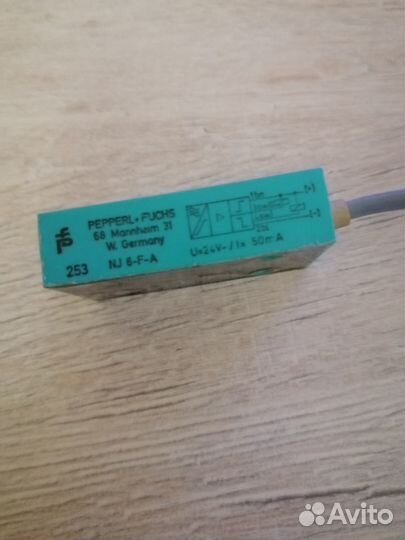

Pepperl+fuchs NJ 6-F-A

Краткое описание: технические характеристики NJ6-F-A General specifications Switching function complementary Output type NPN Rated operating distance 6 mm Installation flush Output polarity DC Assured operating distance 0 ... 4.8 mm Actual operating distance 5.4 ... 6.6 mm typ. Reduction factor rAl 0.22 Reduction factor rCu 0.2 Reduction factor r304 0.7 Output type 4-wire Nominal ratings Operating voltage 10 ... 60 V DC Switching frequency 0 ... 500 Hz Hysteresis 0 ... 0.3 typ. 0.1 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop ≤ 3 V Operating current 0 ... 200 mA No-load supply current ≤ 20 mA Time delay before availability ≤ 15 ms Switching state indicator LED, yellow Functional safety related parameters MTTFd 690 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0 % Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approval cULus Listed, General Purpose CSA approval cCSAus Listed, General Purpose CCC approval Certified by China Compulsory Certification (CCC) Ambient conditions Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Mechanical specifications Connection type cable PUR , 2 m Core cross section 0.34 mm2 Housing material PBT
