Матрица 15 ЖК-экран POS

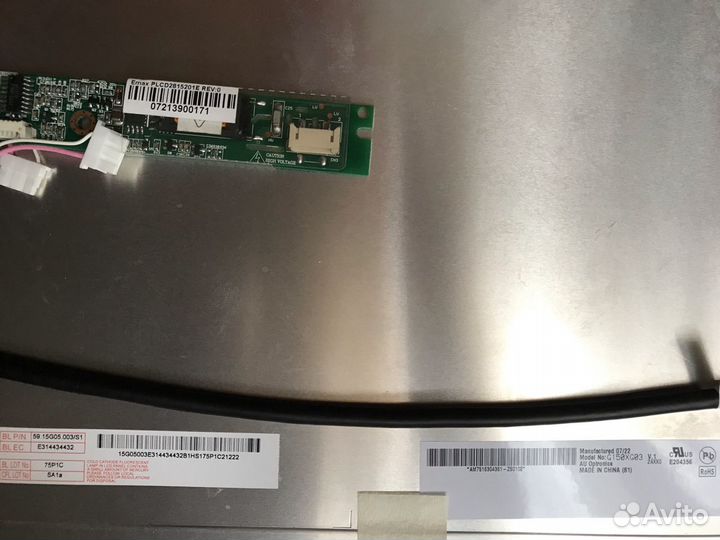

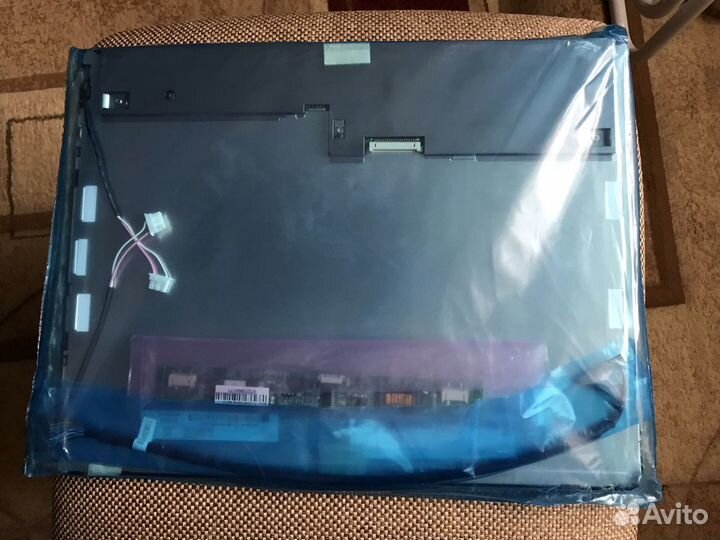

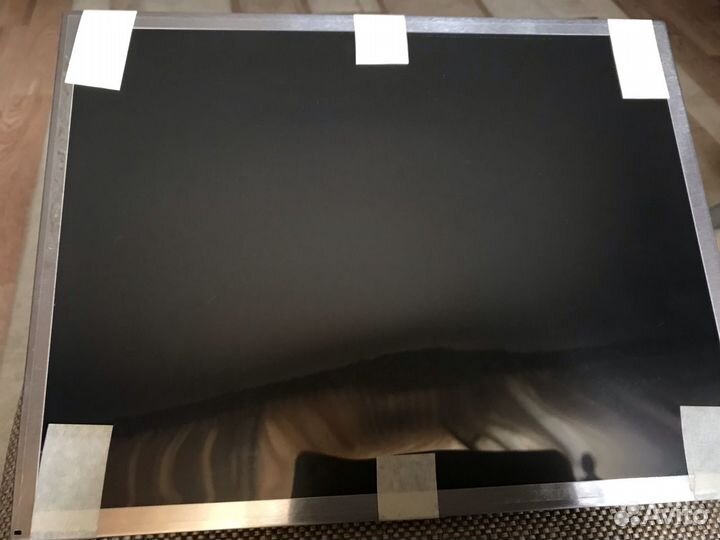

15-дюймовый ЖК-экран G150xg03 v1 Для POS типа Posiflex и др. Panel Size 15.0" Panel Type a-Si TFT-LCD , LCM Resolution 1024(RGB)×768, XGA, 85PPI Pixel Format RGB Display Area 304.128(W)×228.096(H) mm Bezel Opening 307.4(W)×231.3(H) mm Outline Size 326.5(W)×253.5(H) ×12(D) mm Surface Antiglare, Hard coating (3H) Brightness 250 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 70/70/65/55 (Typ.)(CR≥10) [Left / Right / Up / Down] Display Mode TN, Normally White, Transmissive Response Time 8.8/3.5 (Typ.)(Tr/Td) Display Colors 262K/16.2M 65% NTSC Lamp Type 2 pcs CCFL , 50K hours , Without Driver Frequency 60Hz Touch Screen Without Panel Weight 1.15Kgs (Typ.) Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins Connector Input Voltage 3.3V (Typ.) Не подключался ни разу.
