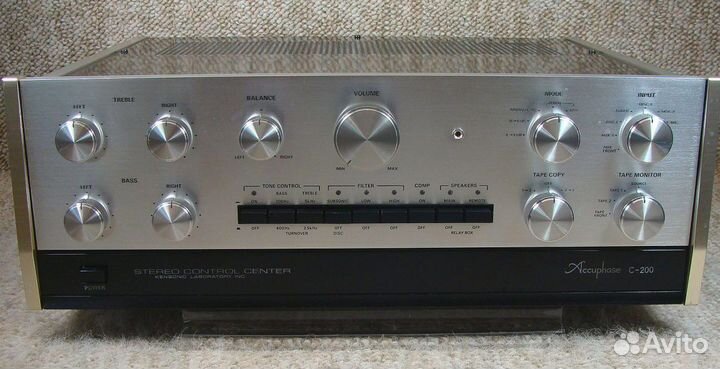

Accuphase C-200 предусилитель

Form Accuphase stereo control amplifier Frequency response High-level input: 20Hz - 20000Hz, and +0 -0.2 dB DISC and a Media-Interface-Connector input: 20Hz - 20000Hz, �}0.2dB THD 0.05% or less (for 20Hz - 20000Hz and by Output power) Input sensitivity/input impedance DISC1:2-6mV/20kohm, 30kohm, 47kohm DISC2:2-6mV/47kohm Media-Interface-Connector: 2mV/47kohm Tuner: 200mV/130kohm AUX1, 2, Front:200mV/130kohm Tape Play1, 2, Front:200mV/130kohm An Output power/Output load impedance Main Output: 2.0V/200 ohm Headphones: 0.4V/0.3 ohm (in volume control maximum and the rated input) Tape Rec Output1, 2, Front: 200mV/200 ohms (at the time of a DISC input) Mono Output: 0.42V/38kohm Maximum-except-take-off level More than 10V (distortion 0.05%) The disc maximum input 400mV - 1.2Vrms (1kHz, 0.05% of distortion) * 400mV is the DISC level-control maximum (equalizer gain 40dB). ��1. 2V is the DISC level-control minimum (equalizer gain 30dB). Gain Tuner, AUX, and a Tape Play input Tape Rec Output Main Output: Headphone: 0dB 20dB 6dB DISC1, 2, and a Media Interface Connector input Tape Rec Output Main Output: Headphone: 40dB 60dB 46dB S/N (an Output power, volume control maximum) Tuner, AUX, Tape Play: 90dB or more (rated input) DISC, Media Interface Connector: 74dB or more (10mV input) Volume control linkage error Less than 1dB Tone control Low-pass : Changing point 400Hz : 200Hz: �}10dB (100Hz) �}10dB (50Hz) High region : Changing point 2.5kHz 5kHz: �}10dB (10kHz) �}10dB (20kHz) DISC low enhancement (massive compensation circuit) They are 0dB, +0.5dB, and +1dB (100Hz) to the RIAA standard characteristic. Compensation (volume control-30dB) 50Hz:+10dB Filter DISC Subsonic Filter: 25Hz, 6 dB/oct A low filter: 30Hz, 12 dB/oct A high filter: 5kHz, 12 dB/oct The semiconductor used Transistor: 80 Diode: 35 Power source 100V, 117V, 220V, 240V, 50Hz/60Hz Power consumption 36W Dimensions Width 445x height 152x depth of 355mm Weight 14kg. Переключен на 220 вольт оригинальный без вмешательств.
