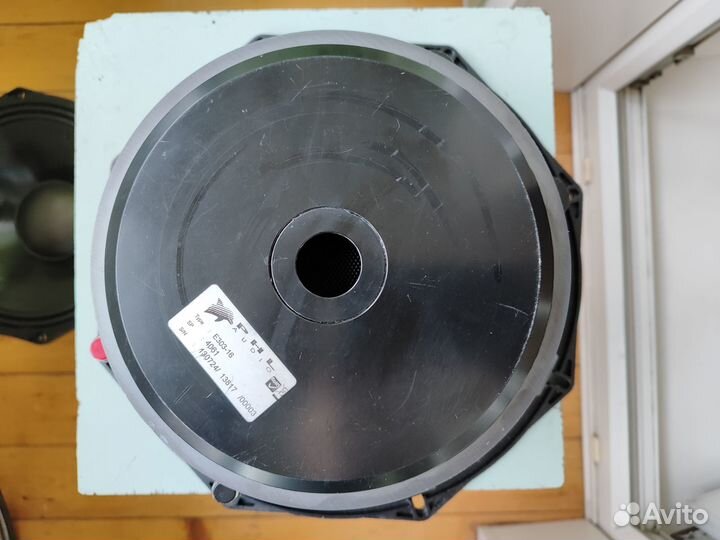

Динамики 12" PHL 4061 16Ом (пара)

Пара отличных быстрых мидбасов в идеальном состоянии вместе с тестовыми корпусами. Первые руки. Стояли в домашней самоделке, изменилась концепция, больше не нужны. Продаю только парой. Параметры: Rated impedance Z Ω 16 Half space sensitivity (1W@1m) - dB SPL 99 Usable freq. range - Hz 60-3000 Power handling capacity (AES) - W 350 Max Sound Pressure Level SPLmax dB SPL 120 Min. impedance modulus Zmin Ω@Hz 15.4@420 Voice-coil inductance @ 1kHz Le1k mH 2.52 Voice-coil inductance @ 10kHz Le10k mH 1.16 BL product BL N/A 28.8 Moving mass Mms kg 0.051 Resonance frequency Fs Hz 49(±6) DC Resistance Re Ω 12.2(±0.6) Mechanical quality factor Qms 3.3 Electrical quality factor Qes 0.23 Total quality factor Qts 0.22 Mechanical suspension compliance Cms 10-6.m/N 205 Effective piston area Sd m2 0.054 Equivalent Cas air load Vas m3 0.084 Max linear excursion Xmax ±mm 4.5 Linear displacement volume Vd 10-3.m3 0.243 Reference efficiency η0 % 4.1 Unity load volume Vas.Qts2 10-3.m3 3.9 Absolute maximum ratings Short term max. input voltage Vmax V 150 Max.excursion before damage Xdam ±mm 12 Ambient operating temperature Ta °C -10 to +50 Storage temperature - °C -20 to +70 Environemental withstanding - - Humidityproof Air volume occupied by the driver - 10-3.m3 2,7 Speaker net mass kg 8.900 Baffle cut-out Diameter (Front mounting) mm 282.0 Bolt number & Metric Diameter - 8x M6 Bolt Circle Diameter mm 300 to 308 Max Overall dimension (on ears) mm 326.5 Max Overall Diemension (out of ears) mm 307.0 Flange Height mm 13.0
