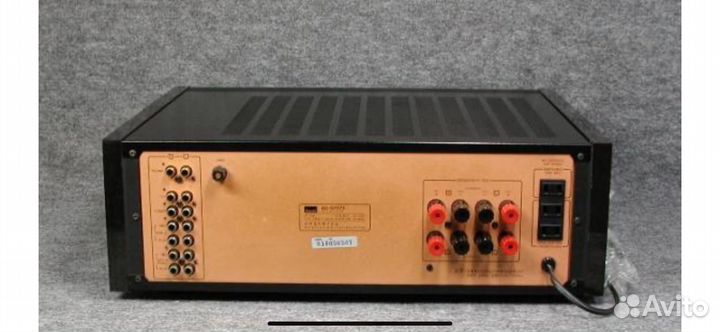

Усилитель Sansui AU-D907X

Type Integrated DC amplifier Effective output (both channel drive) 180W + 180W (6 Ω, 10 Hz to 20 kHz) 160W + 160W (8 Ω, 10 Hz to 20 kHz) 250W + 250W (4 ω, 1 kHz) 210W + 210W (6 ohm, 1 khz) 180W + 180W (8 ω, 1 kHz) Total harmonic distortion factor 0.003% (8 Ω, 10 Hz to 20 kHz, Effective Output) 0.005% (6 Ω, 10 Hz to 20 kHz, 1/2 Effective Output) Intermodulation distortion factor (60 hz : 7 khz = 4 : 1) 0.003% (8 Ω, Effective Output) Output Bandwidth (IHF, both channel operation, THD0.03%) 5 Hz to 80 kHz Damping factor (new IHF, 20 Hz to 20 kHz) 100 (6 Ω) Frequency Response (1W) DC ~ 300 khz + 0 -3dB Envelope distortion Below the measurement limit TIM Strain (Sawtooth method) Below the measurement limit Slew rate ± 300 v / μ sec (6 Ω) Rise time 0.5 μ sec Input Sensitivity / Input Impedance (1 kHz) Phono MM : 2.5mV/47k Ω Phono High MC : 2.5mV/100 Ω Phono MC Low : 100 μ V/3.2 Ω (Uses MC transformer) Phono MC High : 300 μ V/40 Ω (Uses MC transformer) CD, Tuner, Tape1, 2 : 150mV/47k Ω Phono maximum allowable input (1 kHz, THD 0.01%) MM:300mV High MC:300mV MC High : 35 mV (Transformer Type) Output Level / Impedance Tape rec : 150mV/600 Ω RIAA Deviation (MM, Rec out) 20 Hz to 300 kHz ± 0.2 dB Signal-to-noise ratio (A network, short circuit) Phono MM:90dB Phono MC : 80 dB or more (100 μ V) CD, Tuner, Tape : 110 dB Tone control Bass : ± 10 dB (20 Hz) Treble : ± 10 dB (20 kHz) Tone selector Bass : 100 Hz, 200 Hz Treble : 4 kHz, 8 kHz Subsonic filter 16 Hz (-3dB, 6dB/oct.) Audio Muting -20dB Rated power consumption (Electrical Appliance and Material Control Law) 370W External dimensions Width 466x Height 161x Depth 431 mm Weight 20.5kg
