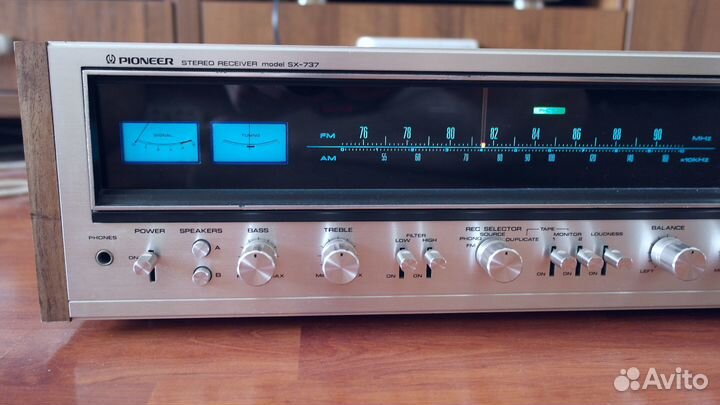

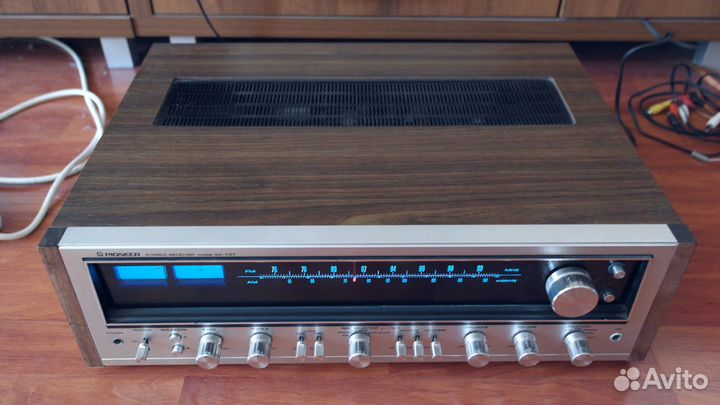

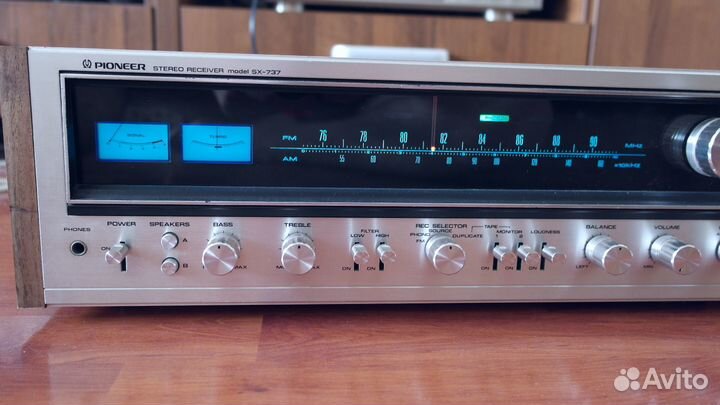

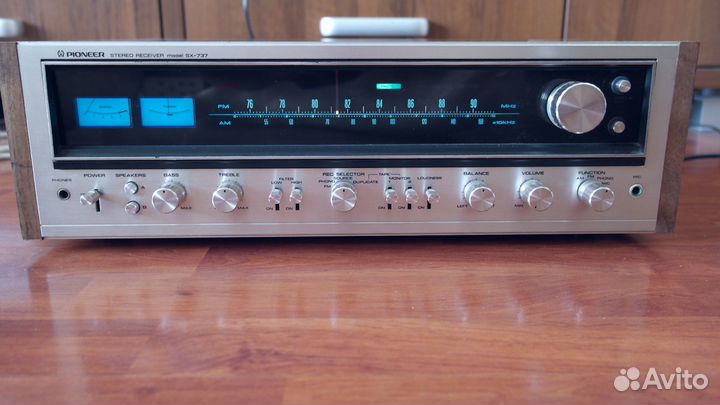

Ресивер Pioneer SX-737

Pioneer SX-737 В ОТЛИЧНОМ ТЕХНИЧЕСКОМ и КОСМЕТИЧЕСКОМ СОСТОЯНИИ не смотря, что аппарату 50 лет! Возможна отправка Years of manufacture: 1974 - 1976 Made in: Japan 100V Color: front silver, wooden cabinet Power consumption: 280 W Dimensions: 500 x 158 x 410mm (WxHxD) Weight: 13,2 kg Connections Number of inputs: Phono MM: 2.5 mV, 50 kOhm, 170 mV max. Microphone (6,3mm jack): 2,5 mV, 50 kOhm Aux: 150 mV, 50 kOhm Tape 1, 2 Play: 150 mV, 50 kOhm Tape Play (DIN): 150 mV, 50 kOhm Antenna (FM: 75, 300 ohms, MW: 300 ohms). Number of outputs: Tape Rec 1, 2: 150 mV Tape (DIN): 30 mV, 80 kOhm Headphones (6.3mm jack) 2 pairs of loudspeakers Technical Data Amplifier Continuous power (at distortion): 8 Ohm: 2x 35 W (RMS, 20 - 20'OOO Hz). 4 Ohm: 2x 40 W dynamic power: 8 Ohm: 4 Ohm: Total harmonic distortion: < 0.5 % Attenuation factor: 40 (8 Ohm, 1 kHz) Frequency response: Phono, RIAA: 30 - 15'000 Hz, ± 0,3 dB High level: 15 - 40'000 Hz, + 0,5 dB, - 1 dB Signal-to-noise ratio: Phono: 70 dB Microphone: 65 dB High level: 95 dB Tone control: Bass: ± 10 dB at 100 Hz Treble: ± 10 dB at 10 kHz Loudness: + 8 dB at 100 Hz, + 3 dB at 10 kHz Subsonic: - 9 dB at 50 Hz, - 6 dB / octave High Filter: - 9 dB at 10 kHz, - 6 dB / octave Mute: Tuner Reception: FM, MW Frequencies: FM: 88 - 108 MHz MW: 525 - 1605 kHz Input sensitivity: FM: 1.9µV MW: 15µV All other specifications for VHF Frequency response: 20 - 15'000 Hz, + 0,2 dB, - 2 dB Distortion factor: Mono: < 0.2 % Stereo: < 0.4 Signal-to-noise ratio: Mono: 70 dB Stereo: 65 dB Channel separation: 40 dB (1 kHz) selectivity: 60 dB Co-wave selection: 1.0 dB Spurious wave selection: 100 dB Image frequency attenuation: 80 dB IF attenuation: 100 dB AM suppression: 55 dB
