Mini ITX материнская плата 2 Lan 6 com

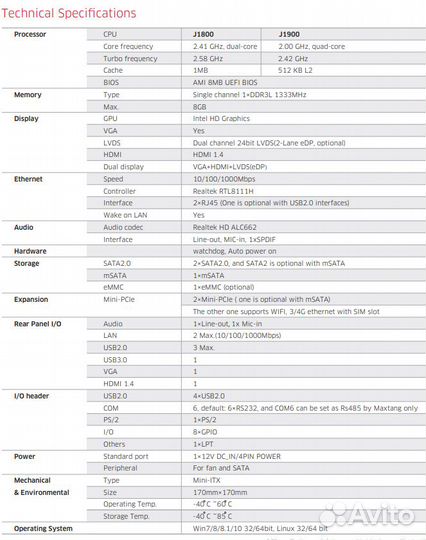

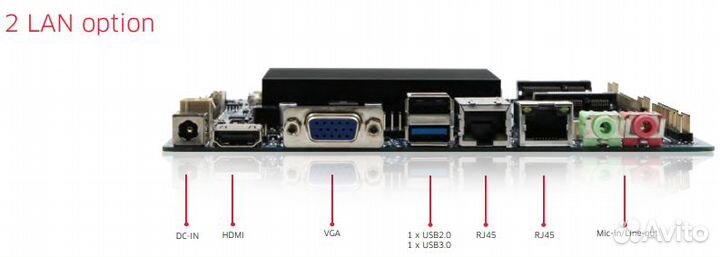

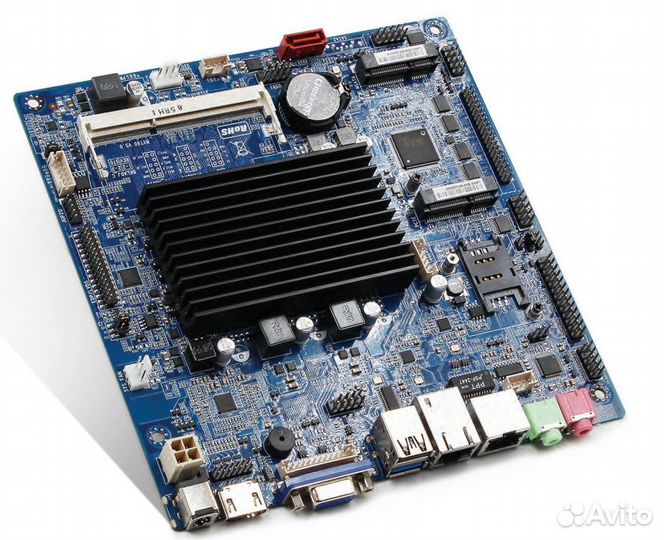

BYT60-Mini ITX Intel Bay Trail Embedded Motherboard Intel Bay Trail-D Celeron processor, fanless design Single channel DDR3L up to 8GB Intel HD Graphics, display interfaces: VGA, HDMI, LVDS(eDP, optional) 10/100/1000Mbit ethernet card SATA2.0, mSATA, Mini-PCIe, eMMC (optional) 12V DC input Powered by Intel Quad-core Celeron processor J1900 or dual-core Celeron processor J1800, this embedded board is power efcient (rated at a TDP of 10 watts) and adequate power-sensitive applications. It carries one DDR3L SO-DIMM slot with a total maximum capacity of 8GB to add higher bandwidth and lower latencies for processes. It has 1×SATA and 1× mSATA(2×SATA and mSATA can be set as mini-PCIe) for storage requirement. This embedded board features 1080p HD display display via VGA interface. It has 7×USB2.0 (max.), 1×USB3.0, 2×LAN(max.), 1×PS/2, 1×LPT, 6×COM(max.), 1×Mic-in and 1×Audio-out, which meets most requirements in the market. This board can deliver cutting-edge performance with very low power consumption. With Celeron processor you will enjoy stunning visuals, effortless multitasking, increased speed and enhanced security to help you create, play, entertain and achieve. Another special feature of this board is its 6×COM interfaces, which makes it an ideal for applications like transportation, communication and so on.
