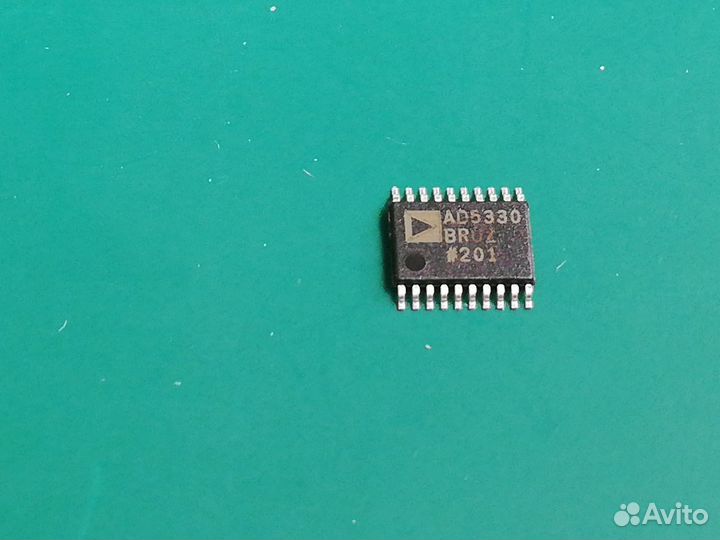

Микросхема Analog Devices AD5330bruz

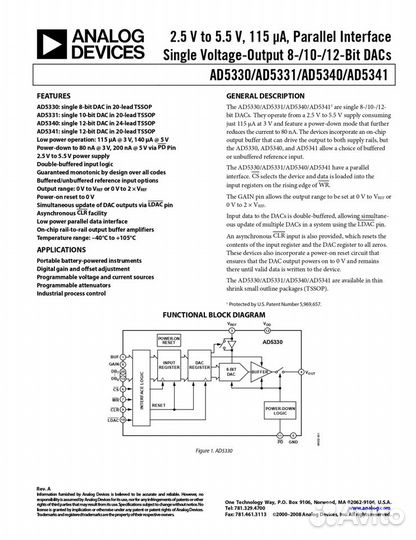

Цифро-аналоговый преобразователь AD5330: single 8-bit DAC in 20-lead TSSOP Low power operation: 115 μA @ 3 V, 140 μA @ 5 V Power-down to 80 nA @ 3 V, 200 nA @ 5 V via PD Pin 2.5 V to 5.5 V power supply Double-buffered input logic Guaranteed monotonic by design over all codes Buffered/unbuffered reference input options Output range: 0 V to VREF or 0 V to 2 × VREF Power-on reset to 0 V Simultaneous update of DAC outputs via LDAC pin Asynchronous CLR facility Low power parallel data interface On-chip rail-to-rail output buffer amplifiers Temperature range: −40°C to +105°C APPLICATIONS Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators Industrial process control
