Мультиплексор 100Gb

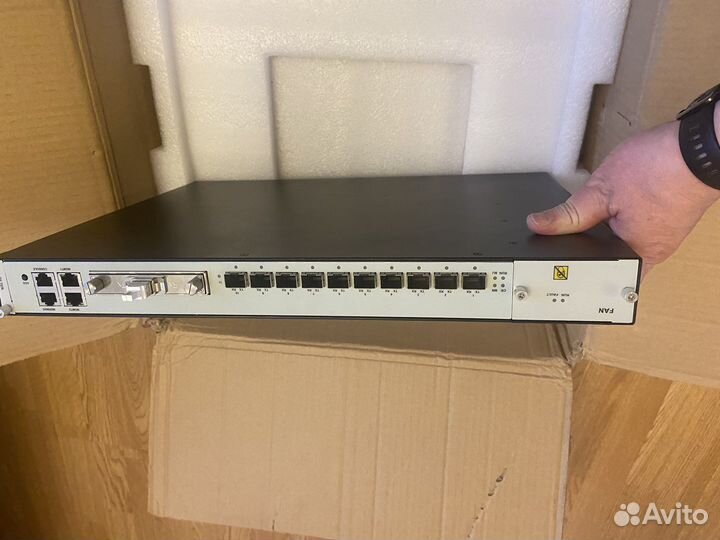

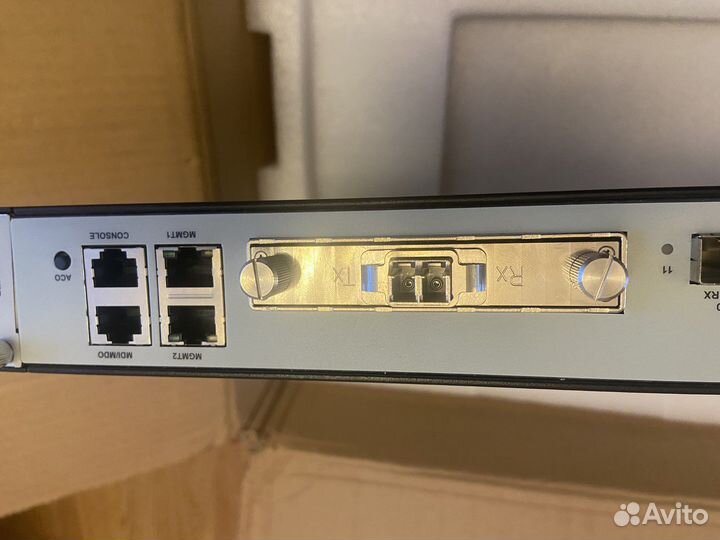

Мультиплексор STN6800-M1H10 100G OTN Muxponder новый. В отличном состоянии. Софт русифицирован. Цена договорная. Торг уместен. Характеристики приведены ниже. Overview: STN6800-M1H10 100G OTN Muxponder STN6800-M1H10 100G OTN Muxponder M1H10 is a 100G OTN muxponder board, which can realize the multiplexing and demultiplexing functions from 10 channels of 10G services to OTU4. The client-side port supports access of 10 channels of 10G services. The typical services include STM-64, 10GE and OTU2/2e. The line-side port supports 1 channel of OTU4 signal, which supports PM-QPSK and coherent demodulation technology, as well as supports G.709 FEC and SD-FEC error correction technology functions. STN6800-M1H10 is suitable for STN6800 2U/ 5U/ 10U chassis. Functions: ➢ The client-side port supports access of 10 channels of 10G services. The typical services include STM-64, 10GE and OTU2/2e. ➢ The line-side port supports 1 channel of OTU4 signal, which supports PM-QPSK and coherent demodulation technology, as well as supports G.709 FEC and SD-FEC error correction technology functions. ➢ The board supports cross-connect of OTN services and overhead processing functions. ➢ The board supports GCC in-band management channel. ➢ The board supports OTN electrical-layer protection function. M1H10 Front Panel Description STN6800-M1H10 100G OTN Muxponder Hardware Specifications: Figure 1. Front Panel of M1H10 Service Card Item M1H10 Description RUN FAULT Indicator Light Optical Interface Indicator light of board running state. Slow Flash of Green Light: The sytem has been successfully started. Green Light Always OFF: The system has not been started. Indicator light of board alarm. Quick Flash of Red Light: The board is mismatched. Slow Flash of Red Light: There is latchopen alarm of the board. Red Light Always ON: There is alarm of the board. Red Light Always OFF: There is no alarm of the board. 1~10 Client-side optical interface, SFP+ packaging. 11 Line-side optical interface, CFP packaging. M1H10 Functional Unit Description: Item Description Client-side Optical Module M1H10 board provides 10 client-side optical transceiver modules, each of which is pluggable packaging module (SFP+). Receiving Direction: Access client services such as STM-64 (OC-192) and 10GE to realize optical-electrical conversion function of service signals. Transmitting Direction: Realize electrical-optical conversion and output client service signals such as STM-64 (OC-192) and 10GE. 2 ODUk Mapping Unit Realize the mapping/de-mapping process of client service electrical signals Service Cross-connect Unit Line-Side Optical Module STN6800-M1H10 100G OTN Muxponder and ODUk (k=2) signals, and detect and process ODUk overhead. Realize the cross-connect function of client service signals of the board, or the client service signals of other boards which are transmitted through the backplane bus. multiplexing/demultiplexing process of ODUk (k=2) and OTU4 signals. M1H10 board provides 1 line-side optical transceiver module, which is pluggable packaging module (CFP), so as to realize optical-electrical conversion and electrical-optical conversion of OTU4 signals. Transmitting Direction: Access OTU4 electrical signals from OTU framing unit, and realize PM-QPSK modulation and FEC coding of signals, and then achieve electrical-optical conversion. After that, OTU4 optical signals are output. Receiving Direction: Realize optical-electrical conversion of OTU4 optical signals. Then achieve DSP processing and FEC error correction. After that, the signals are output to OTU framing unit. OTU Framing Unit Detect and process the overhead of OTU4 frame, and complete the STN6800-M1H10 100G OTN Muxponder Applications: 1. Point to Point 2. Point to Point with Regeneration 3. Two Stages of Multiplexing (together with M2X16)
