Материнская плата msi ms-6787

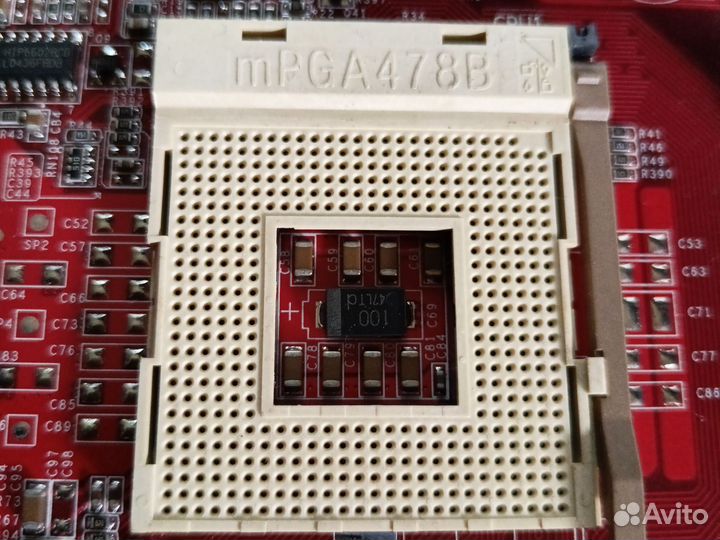

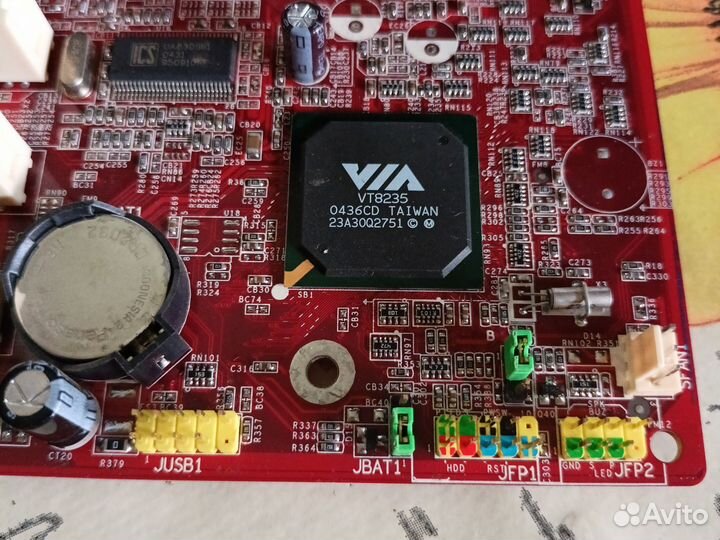

MS-6787 M-ATX Mainboard MS-6787 ver:2 Поддерживает intel Pentium 4/Celeron Socket 478 Чипсет VIAVT8751A chipset (664 BGA)- 64bit P4 processors FSB I/F (533MHz).- 64bit DDR SDRAM memory I/F (200/266MHz).- 32bit AGP I/F (66MHz) for 4x/2x mode.- 8bit V-Link I/F (66MHz) with peak bandwidth of 266MB Поддерживает оперативную память 184-pin DDR DIMM 2GB PC2100/PC1600 SDRAMs. 2.5v DDR SDRAM IDE -HDD/CD-ROM Бортовые периферийные устройства: - 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and2.88Mbytes - 1 serial port (COM A) - 1 parallel port supports SPP/EPP/ECP mode - 6 USB 2.0 ports (Rear * 4/ Front * 2) - 1 audio (Line-In/Line-Out/Mic) port- 1 RJ45 LAN jack- 1 VGA port Звуковая карта: AC97 link controller integrated in VT8235 VT1616 6-channel software audio codec. - Compliance with AC'97 v2.2 spec. Сетевая карта: VT6103 PCI local bus single-chip Fast Ethernet Controller. - With external 10/100 Base-T Lan transformer. - Integrated Fast Ethernet MAC and PHY in one chip. - Supports 10Mb/s and 100Mb/s auto-negotiation operation. - Compliance with PCI v2.2 and PC99 standard. - Supports ACPI power management. BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the pe- ripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. Dimension Micro-ATX Form Factor: 243mm x 214mm
