Карта gicg(gicf) для Huawei MA5683T/MA5680T

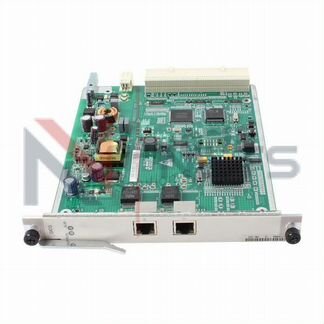

Карта GICG для Huawei MA5683T MA5680T с 2xGE Uplink портами RJ45  — Corresponding Control Board: SCUN/SCUL/SCUH; — Power Consumption: H801GICG : Static: 6.3 W; Maximum: 9.2 W; — Maximum Frame Size: 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported; — Dimensions (mm): 25.40 (W) x 237.00 (D) x 197.20 (H); — Operating temperature: -25°C to +65°C. 2. Плата GICF для шасси Huawei MA5683T MA5680T 2xGE optical Uplink порта   — Corresponding Control Board: SCUN/SCUL/SCUH; — Power Consumption: H801GICF : Static: 3.9 W, Maximum: 3.9 W; — Maximum Frame Size: 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported; — Dimensions (mm): 25.40 (W) x 237.00 (D) x 197.20 (H); — Operating temperature: -25°C to +65°C. SFP Module specification: — SFP module type (typical configuration): One-channel two-fiber bi-directional optical module; — Operating Wavelength: 1310 nm; — Port Rate: 1.25 Gbit/s; — Minimum Output Optical Power: -9.00 dBm/-9.50 dBm; — Maximum Output Optical Power: -3.00 dBm; — Maximum Receiver Sensitivity: -20.00dBm; — Optical Connector Type: LC; — Optical Fiber Type: Single-mode; — Reach: 10.00KM; — Overload Optical Power: -3.0 dBm; — Extinction Ratio: 9.0 dB.
