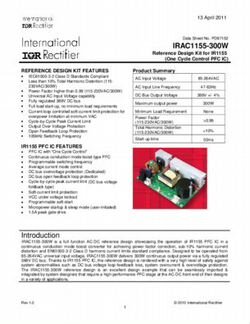

Irac1155-300W Reference Design Kit for IR1155

Абсолютно новая плата: IRAC1155-300W Reference Design Kit for IR1155 REFERENCE DESIGN KIT FEATURES • IEC61000-3-2 Class D Standards Compliant • Less than 10% Total Harmonic Distortion (115- 230VAC/300W) • Power Factor higher than 0.99 (115-230VAC/300W) • Universal AC Input Voltage capability • Fully regulated 388V DC bus • Full load start-up, no minimum load requirements • Current loop controlled soft-current limit protection for overpower limitation at minimum VAC • Cycle-by-Cycle Peak Current Limit • Output Over Voltage Protection • Open Feedback Loop Protection • 100kHz Switching Frequency Product Summary AC Input Voltage 85-264VAC AC Input Line Frequency 47-63Hz DC Bus Output Voltage 388V +/- 4% Maximum output power 300W Minimum Load Requirement None Power Factor (115-230VAC/300W) >0.99 Total Harmonic Distortion (115-230VAC/300W) <10% Start-up time 50ms
