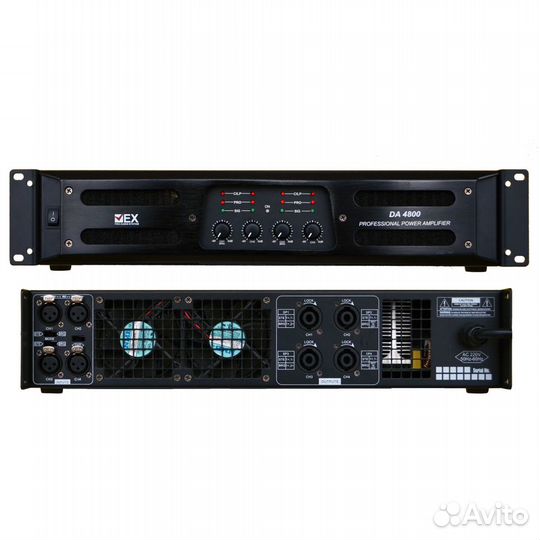

Усилитель мощности класса D VEX - DA4800

Output power 1 KHZ: Stereo 8 Ω — 4 x 800 W Stereo 4 Ω — 4 x 1050 W Bridge 8 Ω — 2 x 2100W Frequency response (BYPASS-ON): 20 Hz to 20 kHz Frequency response (LO CUT-ON): 30 Hz to 150 Hz Input sensitivity: 0.775 V THD%: 1/8 RMS, 1KHZ: <0.1% Slew rate(RMS,1KHZ): >20V/μs damping Factor(RMS,1KHZ): >250 Dynamic: ≥95dB S/N ratio (A-weighted, RMS): ≥95dB Voltage gain: 33dB Input impedance: Balance:20K Ω, unbalanced:10K Ω Average power consumption (music program): 1500W Output circuit design: CLASS H LED indicators: On/ PROT/CILP Limit/SIG Connectors: Input: 4 XLR female sockets; Output: 4 Speakon sockets ; Cooling system: Low-noise , Variable speed fans; air flow from front to the rear Power supply: 230V~50/60Hz Dimensions (W×D×H): 483mm x 240mm x 44mm
