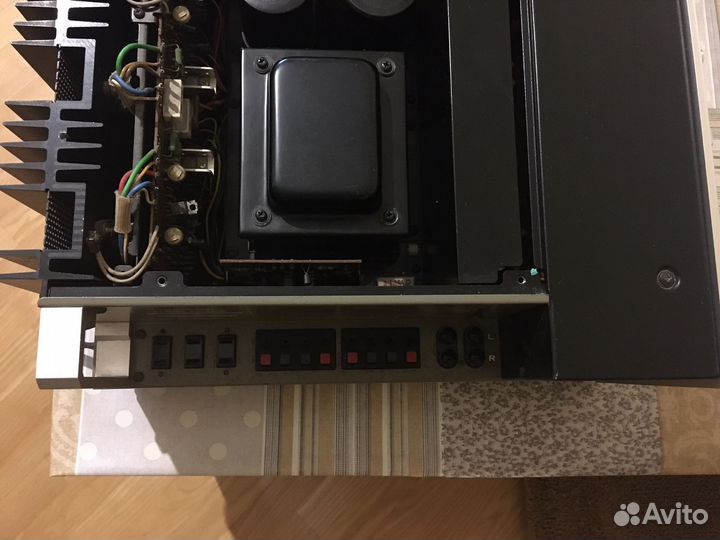

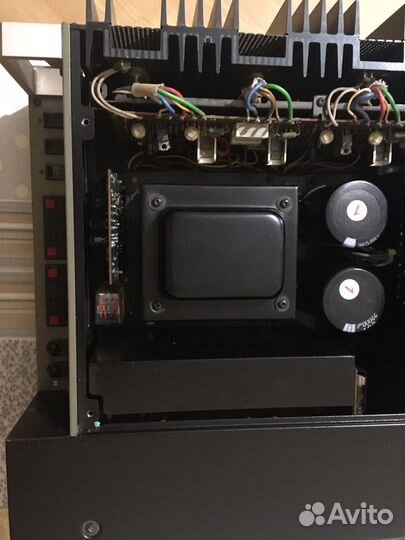

Усилитель Pioneer SA-9800

Винтажный усилитель Pioneer SA-9800. Питание: 100V. Сделана профилактика. Состояние очень хорошее. Рабочий. Могу отправить, СДЭК. СПЕЦИФИКАЦИЯ Type Stereo pre- main amplifier < Power amplifier section > Circuitry Differential 1 step all stage directly connected parallel PP purity complimentary OCL Effective output (both ch drive, 20Hz - 20kHz) 100W + 100W (4 Ω) 80W + 80W (8 Ω) Harmonic distortion factor (20Hz - 20kHz) 0.1% or less (at the time of effective output) 0.05% or less (at the time of 40W output, 8 Ω) 0.05% or less (at the time of 1W output, 8 Ω) Cross modulation distortion factor 0.1% or less (at the time of effective output) 0.05% or less (at the time of 40W output, 8 Ω) 0.05% or less (at the time of 1W output, 8 Ω) Output bandwidth (IHF and both ch drive) 5Hz - 40kHz (distortion factor 0.1%) Frequency characteristic 10Hz - 80kHz +0 -1dB Input sensitivity/impedance POWER amp in: 1C$v/50k Ω Output terminal Speaker A B: 4 Ω - 16 Ω Speaker A+B: 8 Ω - 16 Ω Headphone: 4 Ω - 16 Ω Damping factor (20Hz - 20kHz) 30 or more SIGNAL-TO-NOISE RATIO (IHF and A network, short circuit) Above 100dB < Pre-amp section > Circuitry Equalizer - amplifier: Plus and minus 2 power source, differential 1 step 3 step directly connected A class SEPP Control amplifier: Plus and minus 2 power source, the first level FET Input sensitivity/impedance Phono1: 2.5mV/50k Ω Phono2: 2.5 - 10mV/35k Ω, 50k Ω, 70k Ω, 100k Ω Tuner and Aux1, 2, Tape PB1, 2: 150mV/50k Ω Phono maximum permissible input (harmonic distortion factor 0.1%, 1kHz) Phono1: 250mV Phono2: 250mV - 500mV Output level/impedance Tape Rec1, 2: 150mV Pre out: 2V/1k Ω Harmonic distortion factor (20Hz - 20kHz) 0.05% or less Frequency characteristic Phono (RIAA deviation): 30Hz - 15kHz ±0.2dB Tuner, Aux and Tape PB: 7Hz - 40kHz +0 -1dB Tone control Bass: ±10dB (25Hz/50Hz/100Hz) Turn over frequency: 100Hz/200Hz/400Hz Treble: ±10dB (8kHz/16kHz/32kHz) Turn over frequency: 2kHz/4kHz/8kHz Filter Low: 15Hz, 30Hz and 12dB/oct High: 8kHz, 12kHz and 12dB/oct Muting 0, -15dB and -30dB SIGNAL-TO-NOISE RATIO (IHF and A network, short circuit) Phono: Above 70dB Tuner, Aux and Tape PB: Above 90dB < Synthesis > Use semiconductor Transistor: 54 FET: 2 Diode other things: 26 AC outlet Power source switch gearing: 2 systems Power source switch non-linkage: 1 system Power supply voltage AC100V and 50Hz/60Hz Electric power consumption 190W (rating) 530W (maximum) External size Width 420× height 165× depth 403mm Weight 17.2kg
