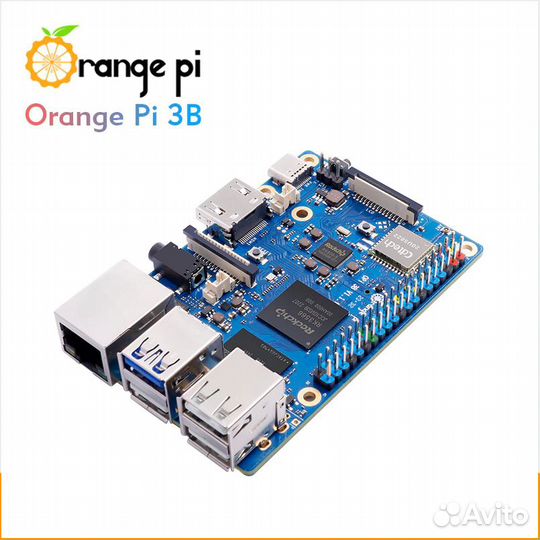

Orange Pi 3B 4GB

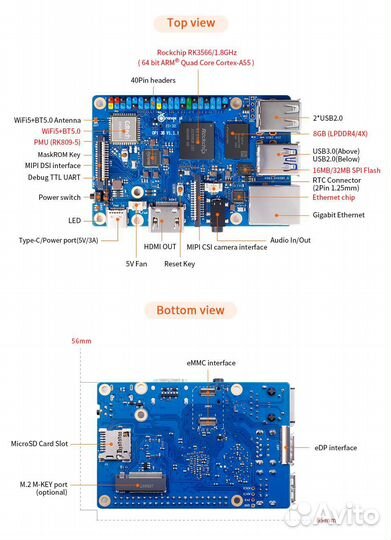

Новая версия Orange Pi SoC: RockchipRK3566 CPU Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz GPU: — ARM Mali G52 2EE graphics processor — Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 — Embedded high performance 2D acceleration hardware NPU: — Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance — Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models VPU: — 4K@60fps H.265/H.264/VP9 video decoding — 1080P@100fps H.265 video encoding — 1080P@60fps H.264 video encoding PMU: RockChip RK809-5 RAM: 2GB/4GB/8GB （LPDDR4/4x） Memory — Support eMMC module:16GB/32GB/64GB/128GB/256GB — SPI Flash: 16MB/32MB — M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs — Micro SD slot Wi-Fi+BT:  Wi-Fi 5+BT 5.0，BLE（20U5622） Ethernet:  10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C) Video Output: — 1* HDMI TX 2.0 , up to 4K@60fps — 1*MIPI DSI 2 lane — eDP1.3 Camera: 1*MIPI CSI 2 lane camera interface USB — 1*USB 2.0 support Device or HOST mode — 1*USB 3.0 HOST — 2*USB 2.0 HOST Audio: 3.5mm headphone jack audio in/out Button: 1* MaskROM key, 1* RESET key, 1 *POWER key FAN: 2Pin 1.25mm size 5V fan connector   RTC 2Pin 1.25mm size battery backup connector 40Pin: 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
