Kentec liou Multi Input / Output Unit K507

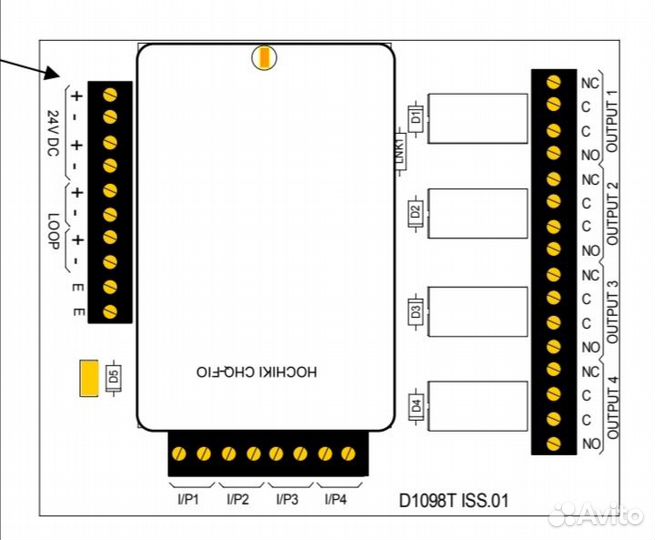

Аналоговый модуль ввода/вывода LIOU Lite provides 4 inputs and 4 outputs to a Hochiki analogue addressable detection loop in a compact and cost-effective package. The LIOU Lite can replace up to four addressable modules in approximately the same space taken by one standard module and is ideal for applications where a concentration of I/O is needed in a limited space. The LIOU connects to the ESP loop as per all other ESP devices. Consider the maximum number of sub-addresses when using LIOU. Key Features: Four optically isolated inputs Four volt free changeover relay contact outputs 24V DC powered Small footprint Cost effective for concentrated I/O applications Built in short circuit isolator Compatible with Syncro and Syncro AS addressable fire control panels Hochiki ESP protocol
