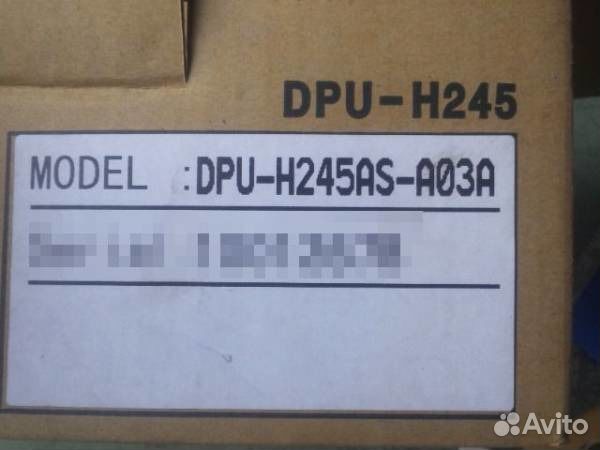

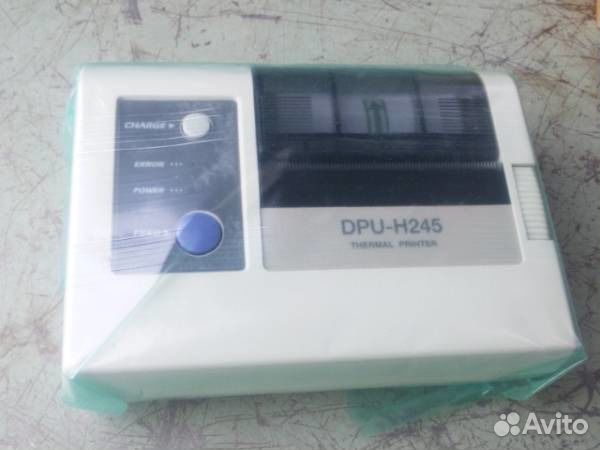

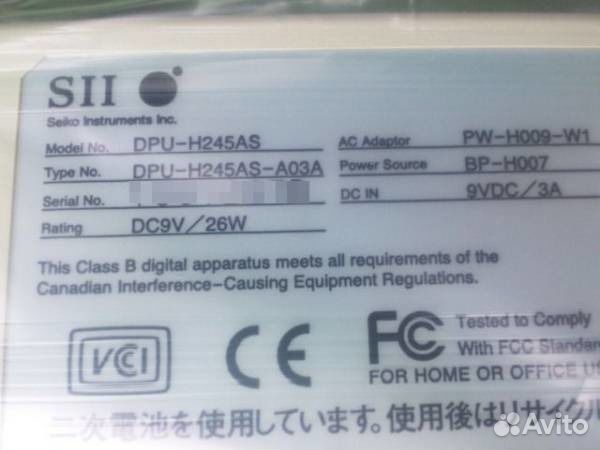

Портативный принтер seiko DPU-H245

DPU-H245 THERMAL PRINTER Новый в упаковке. В комплекте с аккумуляторами. [Features] • Paper width: 58 mm, Printing width: 41.5 mm (mode A)/48 mm (mode B) • Switching between two command systems: mode A (DPU-201G compatible) and mode B • Input buffer size: 512 bytes • Selection of international character sets for eight countries • Universal AC adapter that supports commercial power voltage of various countries • Ample availability for portable equipment using built-in NiMH batteries • Two models with a serial interface (RS-232C) and one model with a parallel interface (conforming to 8-bit Centronics) are provided. The serial interface models use either millimeter-size screws or inch-size screws, corresponding to RTS/CTS control and Xon/Xoff control. SPECIFICATIONS DPU-H245AP-A03A-E Parallel type DPU-H245AS-A03A-E Serial type (millimeter-size screws) DPU-H245AS-B03A-E Serial type (inch-size screws) A-1 Printing method Thermal line dot A-2 Data input Note: Parallel type and serial types are different models. Parallel type 8-bit parallel (Handshake by STROBE and BUSY) Serial type RS-232C (150 to 38400 bps, BUSY control, Xon/Xoff control) A-3 Character mode [Mode A] (1) Character type ANK: 292 types (2) Character configuration 24 × 12 dots (H × W) (including 3 dots of line spacing and 2 dots of character spacing) (3) Character size 3.0 mm × 1.5 mm (H × W) (including 0.375 mm of line spacing and 0.25 mm of character spacing) (4) Printable characters 27 characters with normal characters [Mode B] (1) Character type ANK: 348 types, and JIS Kanji level I and II (2) Character configuration Standard size character: 24 × 12 dots, 16 × 8 dots (H × W) Kanji size character: 24 × 24 dots, 16 × 16 dots (3) Font size Standard size character: 3.0 × 1.5 mm, 2.0 × 1.0 mm (H × W) Kanji size character: 3.0 × 3.0 mm, 2.0 × 2.0 mm (4) Printable characters 24 characters with normal characters (24-dot standard size characters with character spacing of 4 dots) A-4 Bit image mode (total number of dots) [Mode A] 8 × 166 pixels/line (1 pixel is printed with 3 × 2 dots [H × W].) [Mode B] 384 dots/dot line A-5 Maximum printing speed 50 mm/s max. (with AC adapter) A-6 Print width/paper width [Mode A] 41.5 mm/58 mm [Mode B] 48 mm/58 mm A-1 A-7 Power supply [Dedicated external power supply] (1) AC adapter Type: PW-0903H-W1-E Input: 100 to 240 VAC, 50/60 Hz Output: 9 VDC, 3.3 A (0°C to 40°C), 2.5 A (0°C to 50°C) (Printing is executed with the AC adapter power supply when it is connected.) (2) Power supply cable Type: CB-JP02-11A-E (for Japan), CB-US02-18A-E (for USA), CB-CE02-18A-E (for Europe) [Internal power supply] NiMH battery Type: BP-H007-E Configuration: AAA size NiMH battery × 6 A-8 External dimensions 135 × 100 × 38 mm (W × D × H, excluding projection) A-9 Mass Approx. 390 g (excluding AC adapter and paper roll) A-10 Operating environment (1) When not charging battery Temperature: 0 to 50°C Humidity: 30 to 80%RH (no condensation) (2) When charging battery Temperatur
