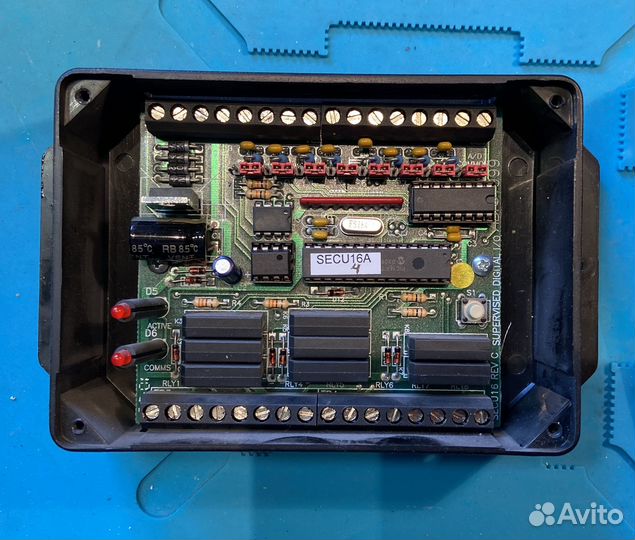

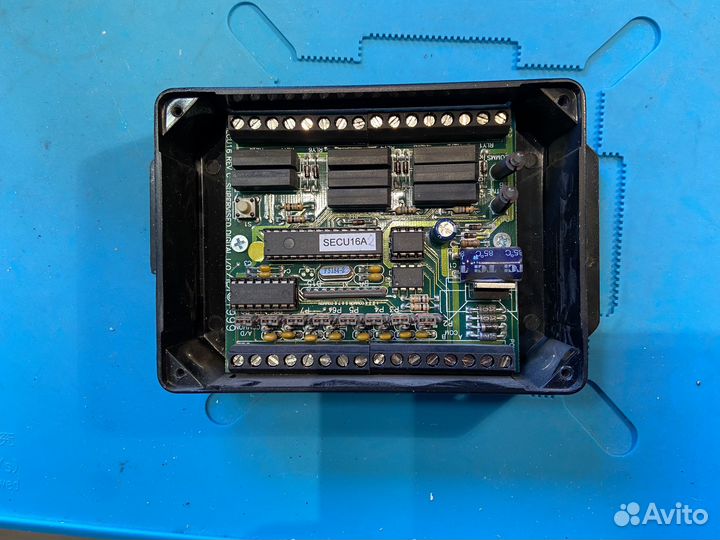

Applied Digital adicon 2500 secu-16 I/O Module

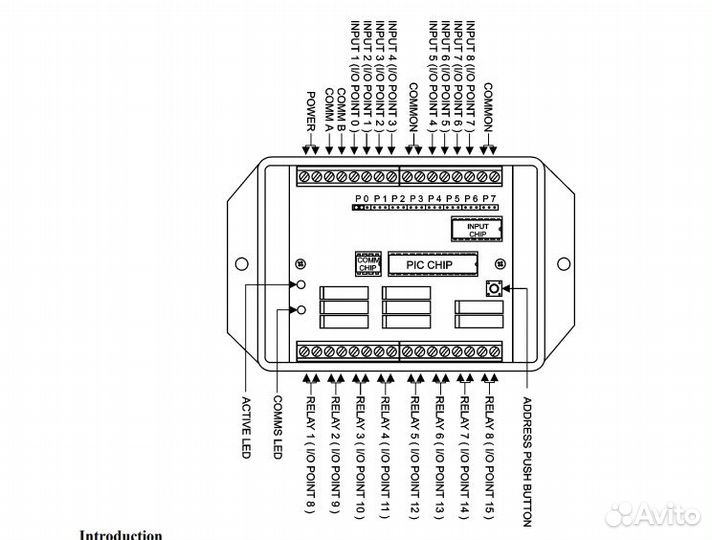

Applied Digital ADICON 2500 SECU-16 I/O Module Features eight relay outputs and eight supervised analog inputs. The 8 input channels may also be used as 8-bit A/Ds. Screw terminals are provided for all connections. Relay loads must be less than 250 mA. Inputs can be 0-5V analog, 4-20 mA sensors, or secure inputs (switches, motion detectors, etc.) RS-485 interface for connection to the ADICON network. Supervised inputs detect broken or shorted wires. I/O: 8 Relay Outputs – Screw Terminals (Form A 0.5A); 8 Input Channels – Screw Terminals (1K Shunt or 0-5V 8-bit Analog) ADNET: 2 Screw Terminals (up to 14 AWG) Power: 2 Screw Terminals (up to 14 AWG) Size: 5.5(L) x 3.25(W) x 1.38(H) inches Power: 9-16 Volts AC or DC, 200 mA Без верхних крышек (могу напечатать за доп.) Две с подрезанным креплением (фото2)
