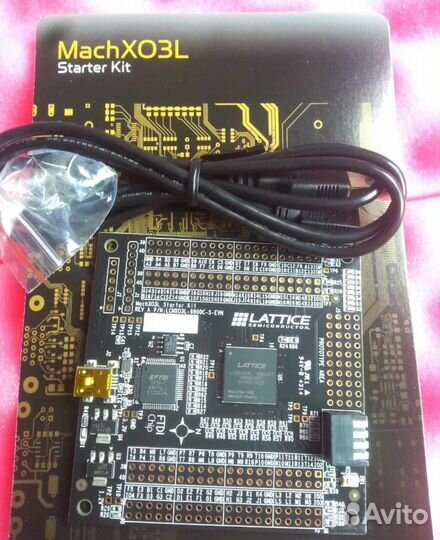

Плата fpga Lattice lcmxo3LF-6900C-S-EVN

Продаю новые платы разработчика Lattice LCMXO3LF-6900C-S-EVN в заводской упаковке. MachXO3 Starter Kit includes:• MachXO3LF Board – The board is a 3" x 3" form factor that features the following on-board components andcircuits:— MachXO3 FPGA – LCMXO3LF-6900C-5BG256C (FlashBased)— USB mini-B connector for power and programming— 4-Mb Serial Flash Memory for boot image and dual-boot support.— Eight LEDs— 4-position DIP switch— Momentary push button switch— 40-hole prototype area— Four 2 x 20 expansion header landings for general I/O, JTAG, and external power— 1 x 8 expansion header landing for JTAG— 1 x 6 expansion header landing for SPI/I— 3.3 V and 1.2 V supply rails• Pre-loaded Demo – The kit includes a pre-loaded counter design that highlights use of the embedded MachXO3oscillator and programmable I/Os configured for LED drive.• USB Connector Cable – The board is powered from the USB mini-B socket when connected to a host PC. TheUSB channel also provides a programming interface to the MachXO3 JTAG port.
